The University of Auckland, a leading research institution, set out to develop a device for measuring ankle torque output in research subjects to quantify the rehabilitation of ankle injuries. They aimed to create a reliable tool that could accommodate a wide range of subjects, from children to adults, while providing accurate data for their studies.

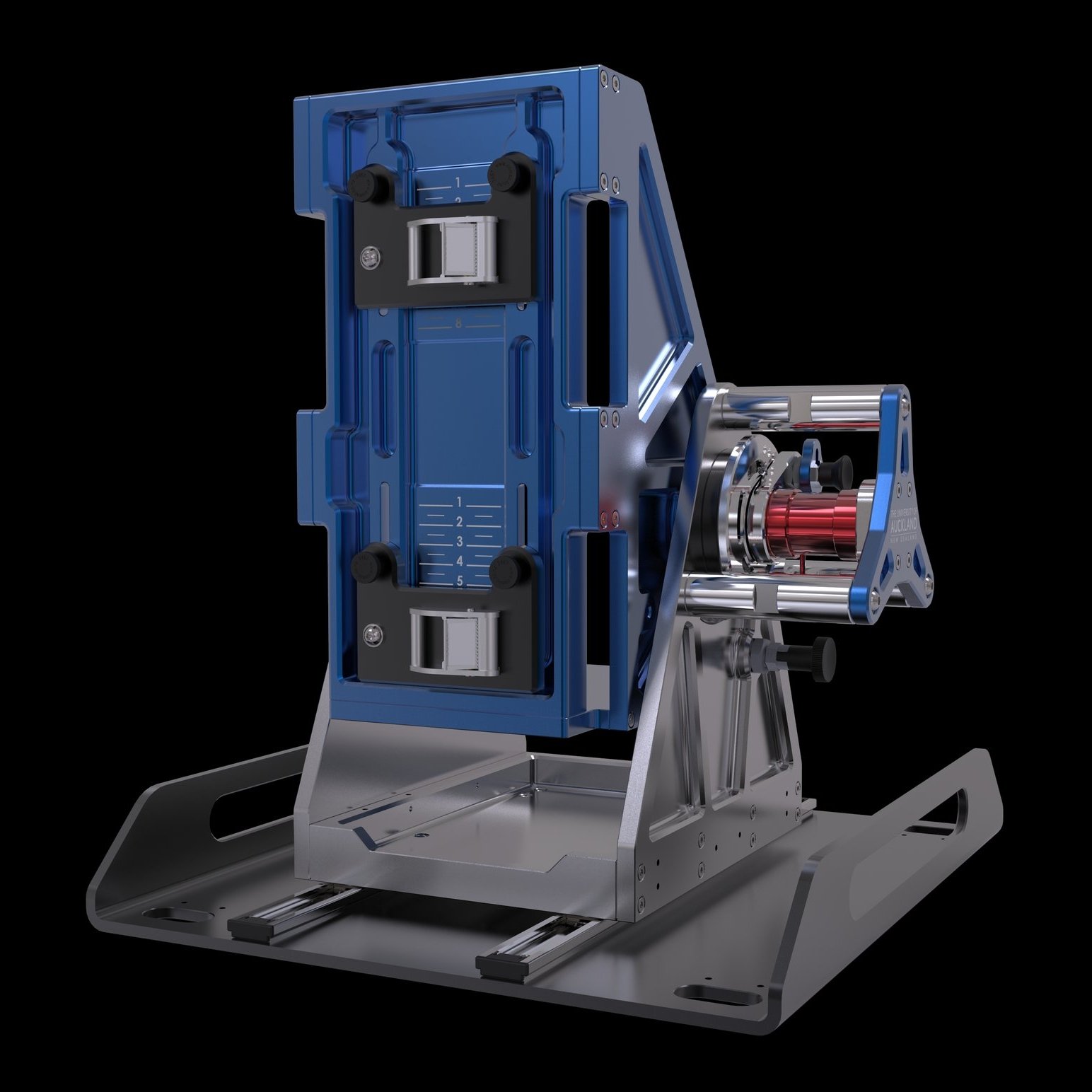

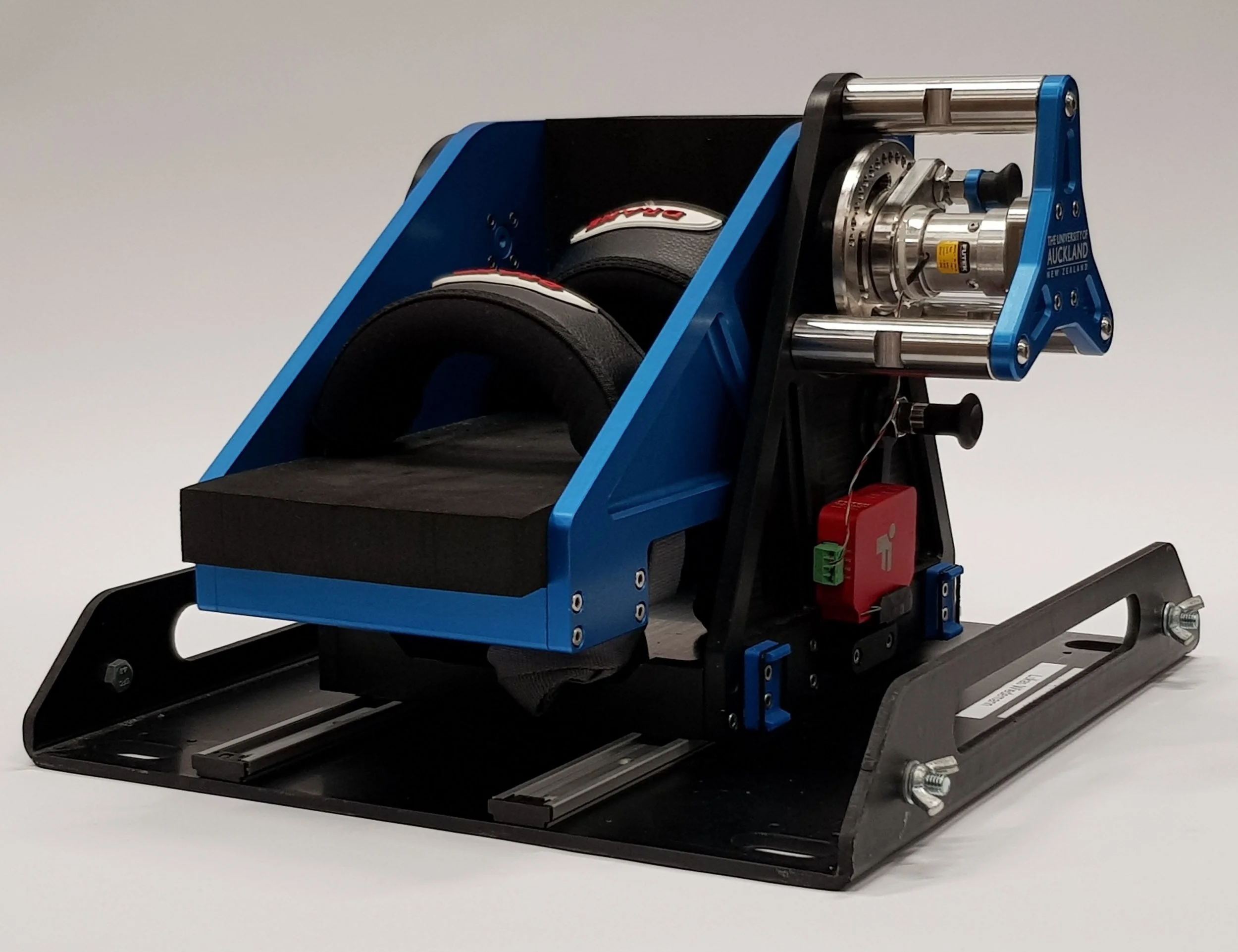

Globex partnered with the University of Auckland to design a robust ankle torque measurement device tailored for research use. The team developed a one-size-fits-all solution using sturdy machined aluminium plates, anodized in the university’s colours, with high-precision features to ensure rigidity and handle up to 150Nm of torque for accurate readings.

To support a wide range of users, Globex included an indexing pin for foot angle adjustability and foam packers to fit subjects of all sizes, while keeping manufacturing costs low for a one-off build. They achieved this through efficient design and vendor coordination, ensuring the device met the university’s needs without compromising quality.

Capabilities Used

• Requirements analysis and concept development

• 3D modelling / CAD design

• Product design and prototyping

• CNC machining

• Assembly design

• Design validation and part inspection

• Vendor management

Globex successfully delivered the ankle torque measurement device to the University of Auckland, meeting all design requirements. This enabled the device’s rigid construction and adjustable features to provide accurate torque measurements across diverse subjects, ready to support the university’s research into ankle injury rehabilitation.
